Product
SRQ series radiator
Detailed Description
Product introduction

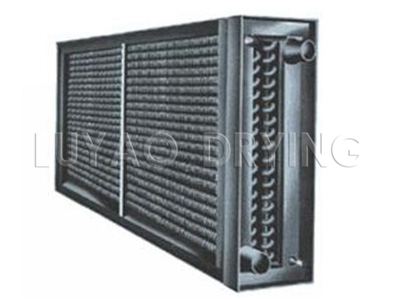

The spiral fin type air heat exchanger produced by our company, also
known as the radiator and the heat discharge pipe, is the main equipment
in the heat exchange device for cooling or heating the air with hot and
cold medium.
Material suitable
heat sink for the hot air heating, air conditioning, cooling,
dehumidifying, drying and so on, for steam or hot water can be heated
air, salt water or cold water through the cooling air can. It is widely
used in industrial and mining enterprises, light industry, paper making,
chemical industry, national defense, textile, electric power, dairy
products, ceramics, hospitals, theaters and other air conditioning
systems. Its structure is composed of spiral fin tubes and is made of
spiral fin tubes. Series products, various models have different sizes.
Ordering
can be equipped with a variety of drying equipment used,
types and specifications, materials are used: aluminum, stainless
steel, A3 zinc plated steel, steel-aluminum, copper, steel pipe and
aluminum sheet wound. In addition, the radiator can be used alone for
heating and dehumidification in indoor and warehouses. Our company can
design and manufacture for users.
◎ When ordering, the product model, name, specified length, number of tubes and number of rows must be stated.
◎When ordering, if there are special specifications and requirements
need to be negotiable, it can be used with various drying equipments.
The specifications are various. The materials used are: aluminum alloy,
stainless steel, A3 steel surface galvanized, steel-aluminum composite,
copper, steel tube aluminum Wrap around. In addition, the radiator can
be used alone for heating and dehumidification in indoor and warehouses.
Our company can design and manufacture for users.
When the heat source is hot water steam or heat transfer oil, the fin size
| stainless steel | Carbon steel | aluminum | |
| Diameter specification | Φ18×2 | Φ19×2 | - |
| Fin outer diameter | Φ38 | Φ39 | - |
| Fin thickness | 0.24 | - | 0.4 |
| Heat transfer area coefficient | 0.64 |
When the heat source is hot air, the fin tube specifications
| Diameter specification | Φ63×3 |
| Fin outer diameter | Φ103 |
| Fin thickness | 1.5 |
| Heat transfer area coefficient | 1.5 |
