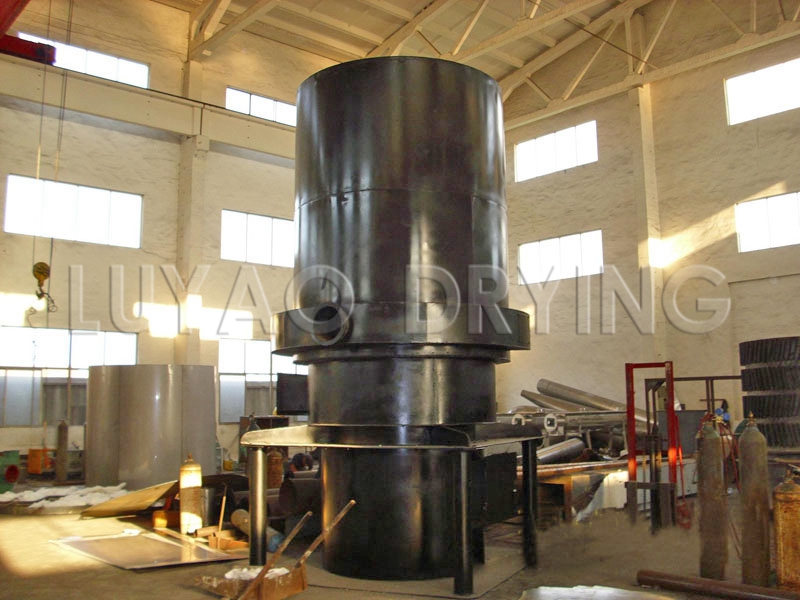

JRF series coal-fired hot blast stove
Detailed Description
Working principle
??The furnace
integrates combustion and heat transfer into one body. The latest
indirect heating technology for heat exchange in the high temperature
part of the furnace body. Smoke and air are all in the right way. The
heating is absolutely non-polluting, the thermal efficiency is high (up
to 60-75%), and the temperature rises quickly. Small size, easy
installation, reliable use, and low price (this heating system is only
half the boiler heating system price compared to a ton boiler).
Features??High-temperature
resistance measures are adopted to extend the service life of the
tube-type hot blast stove. Longitudinal flushing fins for flue gas and
negative pressure exhaust are adopted. The dust does not accumulate in
the heat transfer area, and no heat removal is required. stable. All
kinds of coal or diesel can be used as fuel, and equipped with secondary
air inlet device to burn completely. The technical and economic
indicators of the furnace have reached the leading domestic level.
Adaptable materials
??The furnace is a universal hot air device that is used in conjunction with a variety of material drying equipment . Widely
used in food, seed, feed, fruit, dehydrated vegetables, Xiangru,
fungus, Tremella, tea, tobacco and other agricultural products, food,
pharmaceuticals, chemical raw materials, light and heavy industrial
products, heating and dehumidification, can also be used for heating of
various facilities And warehouse dehumidification and so on.
Technical specifications
| Name\Model | JRF-15 | JRF-20 | JRF-30 | JRF-40 | JRF-60 | JRF-80 | JRF-100 |
| Inner cylinder diameter | 760 | 760 | 1170 | 1170 | 1470 | 1670 | 1870 |
| Outer diameter | 1280 | 1280 | 1840 | 1840 | 2200 | 2460 | 2700 |
| Total height | 3500 | 3500 | 4260 | 4760 | 4810 | 5110 | 5310 |
| Total equipment | 3.15T | 3.65T | 6.8T | 7.5T | 9.8T | 11.7T | 13.5T |
| Hot air outlet diameter | 300 | 300 | 500 | 500 | 500 | 600 | 600 |
| Hot air outlet height | 1585 | 1585 | 1670 | 1670 | 1670 | 1770 | 1770 |
| Smoke outlet diameter | 250 | 250 | 250 | 250 | 250 | 300 | 320 |
| Smoke outlet height | 2050 | 2050 | 2220 | 2220 | 2220 | 2385 | 2385 |
| Horn elbow model | XZD/G Φ578 | XZD/G Φ810 | |||||
| Coal consumption per hour | 43kg | 57kg | 85kg | 115kg | 170kg | 230kg | 286kg |
| Coal combustion value | 5000kcal/h | ||||||
| Thermal efficiency | 70-78% | 75-80% | |||||
| Cigarette fan model | Y5-47-3.15C -1.5KW | Y5-47-4C -2.2KW | Y5-47-4C -3KW | Y5-47-4C -4KW | Y5-47-5C -7.5KW | Y5-47-5C -7.5KW | |
Attention:
◎ The environmental reference temperature standard is 18°C±2°C, and the calorific value of coal is calculated at 5000Kcal/kg.
◎In the table, the hot air temperature is determined according to the
output air volume. Hot air heater JRF4 type hot air temperature up to
200 °C or more, JRF5 JRF6 type hot air temperature up to 300 °C or more
(special manufacturing up to 500 °C or more), users adjust according to
need.
◎ The height of the stove window of the hot blast stove is 3 to 5
meters for the JRF4 type and 5 to 8 meters for the JRF and JRF6 types.
◎ The corresponding position of the outside dimensions in the table is shown in the hot air furnace installation diagram.
◎ The refractory layer on the inner wall of the lower part of the
furnace starts from the hearth. Its height: JRF4-type is 0.5 meters and
can be installed on site.
◎JRF6 is a chain grate burner.
Prev：RLY series fuel, gas hot blast stove
Next：SRQ series radiator
