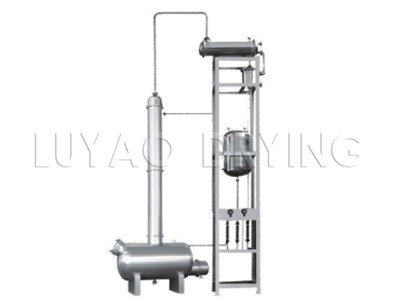

Alcohol recovery tower
Detailed Description
Equipment structural characteristics and technical performance
??
The device uses highly efficient ceramic corrugated packing. The
distillation column body is made of stainless steel, thus preventing the
iron filings from clogging the filler and prolonging the service life
of the device. All parts of the device that come into contact with
alcohol, such as condensers, surge tanks, and cooling coils, are made of
stainless steel to ensure that the finished alcohol is not

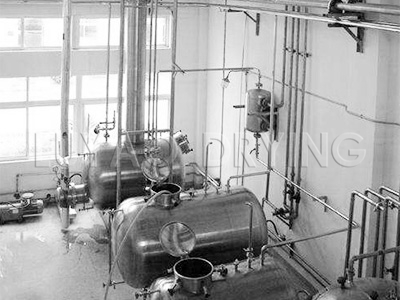

contaminated. The W-type distillation pot adopts a detachable U-shaped
heating pipe. During the inspection, the U-shaped heating pipe can be
removed from the kettle to facilitate the cleaning of the outer wall of
the heating pipe and the inner wall of the distillation pot.
??
The ZW type eliminates the need for an indirect heating still. Condenser
tube heat exchanger, but also according to user requirements to supply
spiral plate heat exchanger, cooler coil cooler, using coil cooler and
matching supply tank and specific gravity measuring device.
Product Usage
??
The device is applicable to the dilute alcohol recovery in
pharmaceutical, food, light industry, chemical industry and other
industries. Also suitable for the distillation of other solvents such as
methanol. According to the user's requirements, this device can dilute
about 30° of dilute alcohol to 90-95° alcohol. If the finished product
requires a high degree of alcohol, the reflux ratio can be increased,
but the production is reduced accordingly. ??There are five types
of
W-type device composition , each type includes the
corresponding configuration of the distillation tower, distillation
kettle, condenser, cooler, regulator tank, specific gravity measuring
device. Among them, the W-200 and W-300 distillation towers are
installed directly on the distillation still. The W-400, W-500, and
W-600 distillation columns were installed separately from the
distillation stills.
??
ZW-type ZW-200, ZW-300 two specifications, each specification includes
the corresponding supporting preheater, distillation tower, condenser,
cooler, regulator tank, specific gravity measuring device.
??
Other auxiliary equipment and instruments such as: metering tanks,
storage tanks, transfer pumps, rotameters, temperature indicating
instruments and other user-owned, our factory can also be processed
according to user requirements or on behalf of the order supply.
Technical parameters
◎ feed concentration: 30% to 80%
◎ discharge concentration: 90% to 95%
◎ reflux ratio: R = 13 (according to the inlet and outlet material concentration )
◎ residue discharge alcohol concentration: W type ≤ 3% , ZW ≤ 1%
◎Production capacity (kg/h): See the table on the right
| model | Tower diameter (mm) | 30% to 40% feed capacity | 60%-80% feed capacity | ||
| 90% | 95% | 90% | 95% | ||
| W-200 | Φ200 | 35 | 26 | 45 | 36 |
| W-300 | Φ300 | 80 | 61 | 100 | 80 |
| W-400 | Φ400 | 150 | 120 | 180 | 140 |
| W-500 | Φ500 | 230 | 185 | 275 | 220 |
| W-600 | Φ600 | 335 | 270 | 400 | 320 |
| ZW-200 | Φ200 | 95 | 60 | 110 | 80 |
| ZW-300 | Φ300 | 200 | 120 | 240 | 165 |
