Product

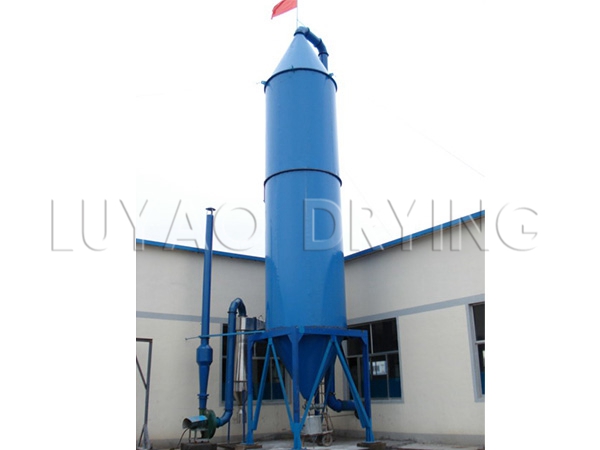

YPG Series Pressure Spray (Cooling) Dryer
Detailed Description
Product Description
??
This unit is a device that can complete drying and pelletizing at
the same time. According to the process requirements, the pressure, flow
rate, and size of the orifices of the feed pump can be adjusted to
obtain the desired spherical particles in a certain size ratio.
Working principle
??
The working process of this unit is that the feed liquid passes through
the high pressure input of the diaphragm pump, sprays droplets of mist,
and then flows down in parallel with the hot air. Most of the particles
are collected from the bottom outlet of the tower, and the exhaust gas
and its tiny powder are separated by cyclones. The device is separated
and the exhaust gas is discharged by an exhaust fan. The powder is
collected by a pollination cylinder located at the lower end of the
cyclone separator. The fan outlet can also be equipped with a secondary
dust removal device with a recovery rate of 96-98%.
Schematic
Performance characteristics
◎Drying speed is fast, the surface area of material liquid is
greatly increased after atomization. In the hot air current, 95%-98% of
water can be evaporated instantaneously, and the drying time only needs
ten seconds to tens of seconds, especially suitable for Drying of
heat-sensitive materials.
◎ All products are spherical particles, uniform particle size, good
fluidity, good solubility, high product purity, and good quality.
◎ Wide range of use, according to the characteristics of the
material, you can use hot air drying, you can also use cold air
granulation, the adaptability of the material.
◎ The operation is simple and stable, the control is convenient, and it is easy to realize automatic operation.
Adapt to the material
Spray drying particles:
◎ chemical: catalyst, resin, synthetic detergent, grease, ammonium
sulfate, dyes, dye intermediates, white carbon black, graphite, ammonium
phosphate and so on.
◎ Foods: Amino acids and their analogues, seasonings, proteins,
starches, dairy products, coffee extracts, fishmeal, meat extract, etc.
◎ Pharmaceuticals: proprietary Chinese medicines, pesticides, antibiotics, pharmaceutical granules, etc.
◎ Ceramics: Magnesium oxide, china clay, various metal oxides, dolomite, etc.
◎ Spray granulation: various fertilizers, alumina, ceramic powder,
pharmaceuticals, heavy metal superhard steel, chemical fertilizers,
granular laundry detergent, proprietary Chinese medicines.
◎ Spray Cooling Granulation: Amine fatty acid, paraffin, glycerin,
tallow, etc. Spray crystallization, spray concentration, spray
reactions, etc. are often used.
Technical specifications
| model | unit | 50 | 100 | 150 | 200 | 300 | 500 | 1,000 |
| Moisture evaporation | Kg | 50 | 100 | 150 | 200 | 300 | 500 | 1,000 |
| Dimensions (Ф×H) | Mm | 1600×8900 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×1880 | 4600×22500 |
| High pressure pump pressure | mPa | 2 to 10 | ||||||
| power | KW | 8.5 | 14 | twenty two | twenty four | 30 | 82 | 30 |
| Inlet air temperature | o C | 140～350 | ||||||
| Product water content | % | <5 (up to 0.5) | ||||||
| Material recovery | % | >97 | ||||||
| Electric heating | KW | 75 | 120 | 150 | When the temperature is lower than 200, according to the actual technology | |||
| Electric steam | Mpa+KW | 0.5+54 | 0.6+90 | 0.6+108 | ||||
| Hot stove | Kcal/h | 100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
★ Above evaporation is the maximum evaporation.
