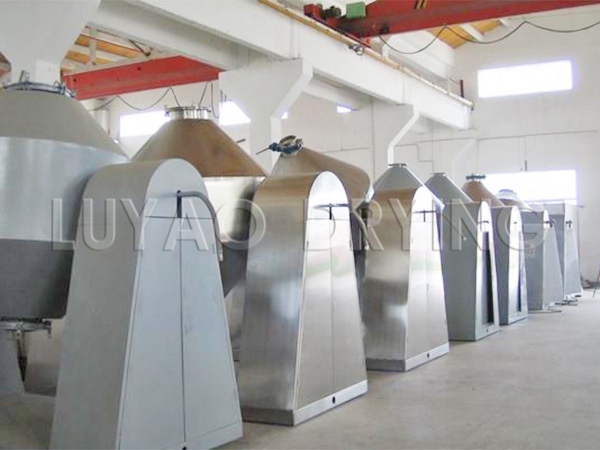

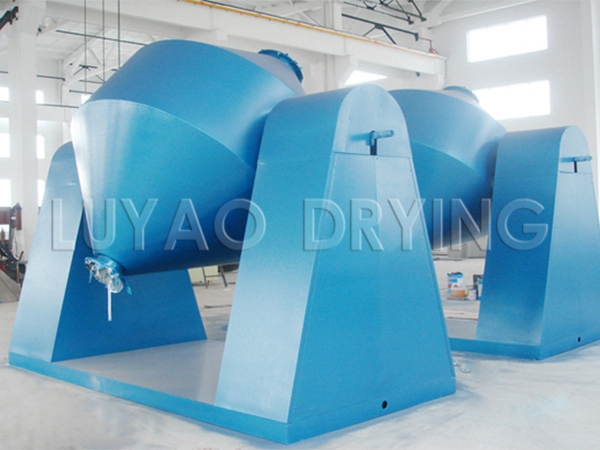

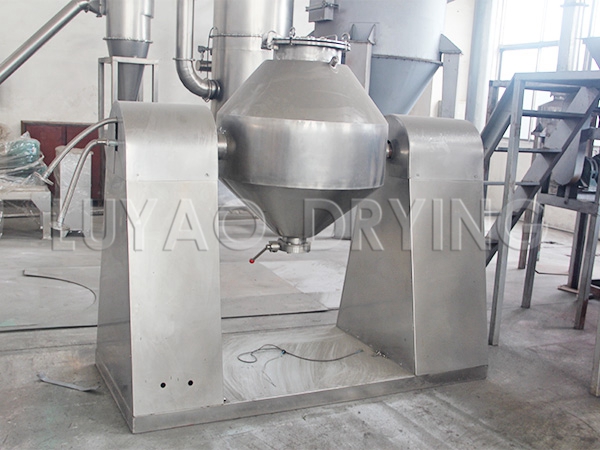

SZG series double cone rotary vacuum dryer
Detailed Description
Product Overview
? ?SZG double cone vacuum dryer is
combined with our factory in domestic similar product technology
developed by a new generation drying device, Cone Vacuum using a belt -
chain two elastic coupling mode, thus smooth operation. The specially
designed process fully embodies the good concentricity of the two
shafts. The heat medium and the vacuum system all use reliable
mechanical seals or American technology rotary joints. On this basis, we
have developed SZG-A which can not only stepless speed regulation but
also thermostatic control.
??
As a professional drying equipment manufacturer,
our products range from high-temperature thermal oils to thermal media,
medium-temperature steam, and low-temperature hot water. When drying
the viscous material, we will specially design the "copy board"
mechanism or set the ball in the tank.
Working principle
◎ In the sealed interlayer, heat energy (such as hot water,
low-pressure steam or heat-conducting oil) is introduced, and heat is
transferred to the dried material through the inner shell.
◎ Under the drive of the power, the tank is rotated slowly and the
materials in the tank are continuously mixed to achieve the purpose of
strengthening and drying.
◎ The material is in a vacuum state, and the vapor pressure drops to
make the water (solvent) on the surface of the material reach saturation
and evaporate, and it is discharged and recovered by the vacuum pump in
time. The process of continuous infiltration, evaporation, and
discharge of water (solvent) inside the material is continuously carried
out and the material is dried in a short time.
Suitable materials
? ?
for the chemical, pharmaceutical, food and other industries of powder,
granular and fiber concentration, mixing, drying and low-temperature
drying materials (such as biochemical products, etc.). It is more
suitable for the drying of materials that are easy to oxidize, volatile,
heat-sensitive, intensely stimulating, toxic materials and materials
that are not allowed to destroy crystals.
Installation demonstration
Performance characteristics
◎ oil heating. Using automatic temperature control. Can be dried biochemical products
◎ and mineral raw materials, the temperature can be between 20 ~ 160 o C.
◎ High thermal efficiency, more than 2 times higher than normal oven.
◎ Indirect heating. The material will not be contaminated and meet the
"GMP" requirements. Equipment maintenance is simple and easy to clean.
◎ Recommended process placement demonstration solvent recovery process placement.
Schematic
Technical specifications
| Name/Specifications | 100 | 350 | 500 | 750 | 1,000 |
| Tank volume | 100 | 350 | 500 | 750 | 1,000 |
| Loading capacity (L) | ≤50 | ≤175 | ≤250 | ≤375 | ≤500 |
| Heating area (m2) | 1.16 | 2 | 2.63 | 3.5 | 4.61 |
| Speed (rpm) | 4 - 6 | ||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 2 | 3 |
| Coverage length × width (mm) | 2160×800 | 2260×800 | 2350×800 | 2560×1000 | 2860×1300 |
| Rotary height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 |
|
Tank design pressure (Mpa) |
-0.1-0.15 | ||||
| Jacket design pressure (Mpa) | ≤ 0.3 | ||||
| Operating temperature ( o C) | Tank ≤85 Jacket ≤140 | ||||
| When using a condenser, a vacuum pump, | 2X-15A | 2X-15A | 2X-30A | 2X-30A | 2X-70A |
| Model, power | 2KW | 2KW | 3KW | 3KW | 505KW |
| When not using a condenser, vacuum pump, | SK-0.4 | SK-0.8 | SK-0.8 | SK-2.7B | SK-2.7B |
| Model, power | 1.5KW | 2.2KW | 2.2KW | 4KW | 4KW |
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 |
| Name/Specifications | 1500 | 2000 | 3500 | 4500 | 5000 |
| Tank volume | 1500 | 2000 | 3500 | 4500 | 5000 |
| Loading capacity (L) | ≤750 | ≤1000 | ≤1750 | ≤2250 | ≤2500 |
| Heating area (m2) | 5.58 | 7.5 | 11.2 | 13.1 | 14.1 |
| Speed (rpm) | 4 - 6 | ||||
| Motor power (kw) | 3 | 4 | 5.5 | 7.5 | 11 |
| Coverage length × width (mm) | 3060×1300 | 3260×1400 | 3760×1800 | 3960×2000 | 4400×2500 |
| Rotary height (mm) | 2940 | 2990 | 3490 | 4100 | 4200 |
|
Tank design pressure (Mpa) |
-0.1-0.15 | ||||
| Jacket design pressure (Mpa) | ≤ 0.3 | ||||
| Operating temperature ( o C) | -0.1-0.15 | ||||
| When using a condenser, a vacuum pump, | JZJX300-8 | JZJX300-4 | JZJX600-8 | JZJX600-4 | JZJX300-4 |
| Model, power | 7KW | 9.5KW | 11KW | 20.5KW | 22KW |
| When not using a condenser, vacuum pump, | SK-3 | SK-6 | SK-6 | SK-9 | SK-10 |
| Model, power | 5.5KW | 11KW | 11KW | 15KW | 18.5KW |
| Weight (kg) | 3300 | 3600 | 6400 | 7500 | 8600 |
Note: For materials with large volume changes before and after drying, the loading factor can be increased or decreased appropriately.
